Liquid Oxygen Plant for Metal Cutting and Welding Operations

◆◆ Key Components and Process Flow ◆◆

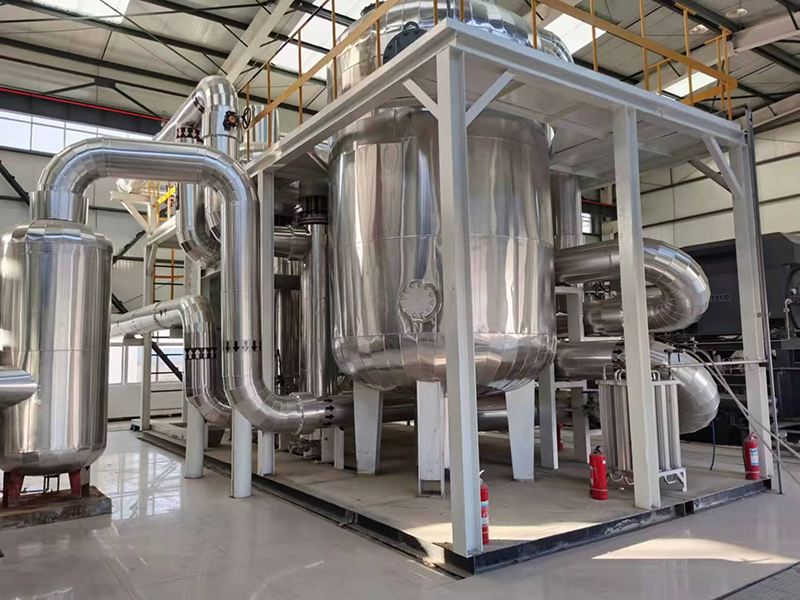

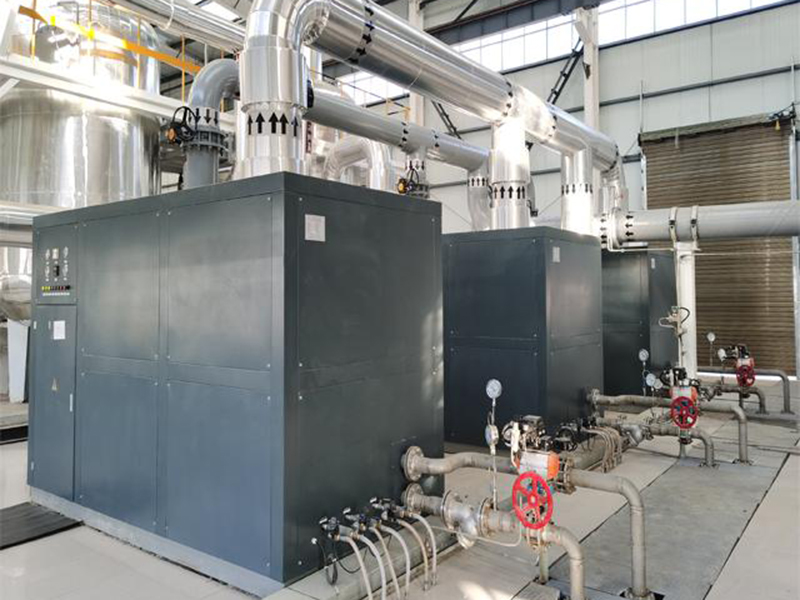

1. Air Compression and Purification:

• Ambient air is compressed and filtered to remove dust, moisture, CO₂, and hydrocarbons.

• Adsorption units (e.g., molecular sieves) further purify the air to meet oxygen production standards.

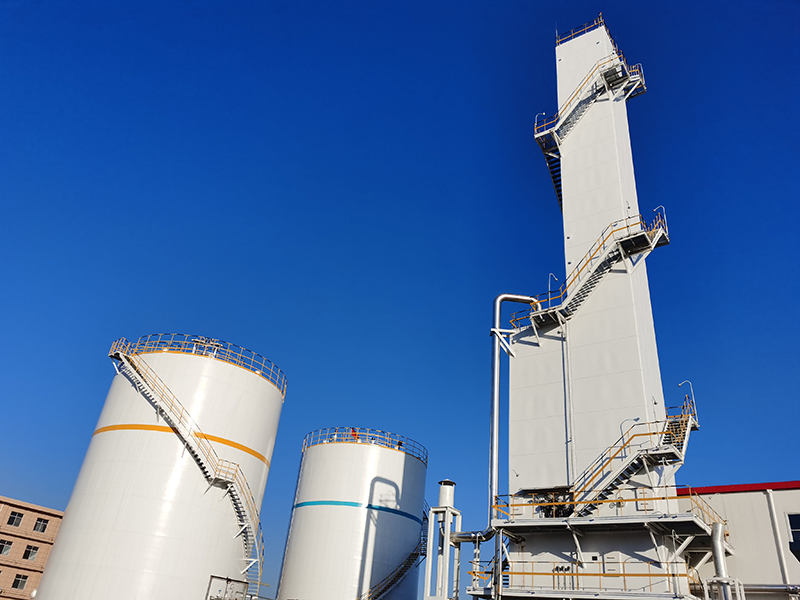

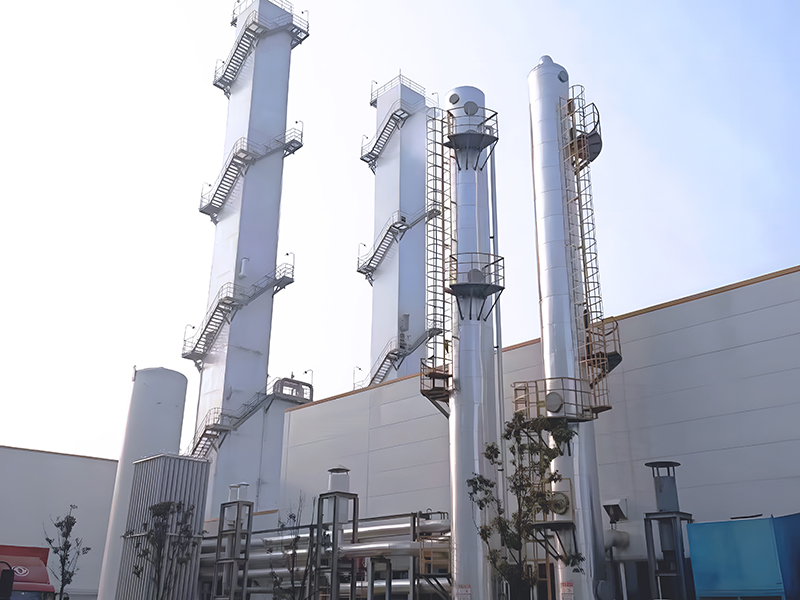

2. Cryogenic Air Separation:

• The purified air is cooled to cryogenic temperatures (below -183°C) using multi-stage heat exchangers and turboexpanders, causing it to liquefy.

• The liquefied air enters a distillation column, where oxygen (boiling point: -183°C) is separated from nitrogen (boiling point: -196°C) and other gases.

3. Liquid Oxygen Production and Storage:

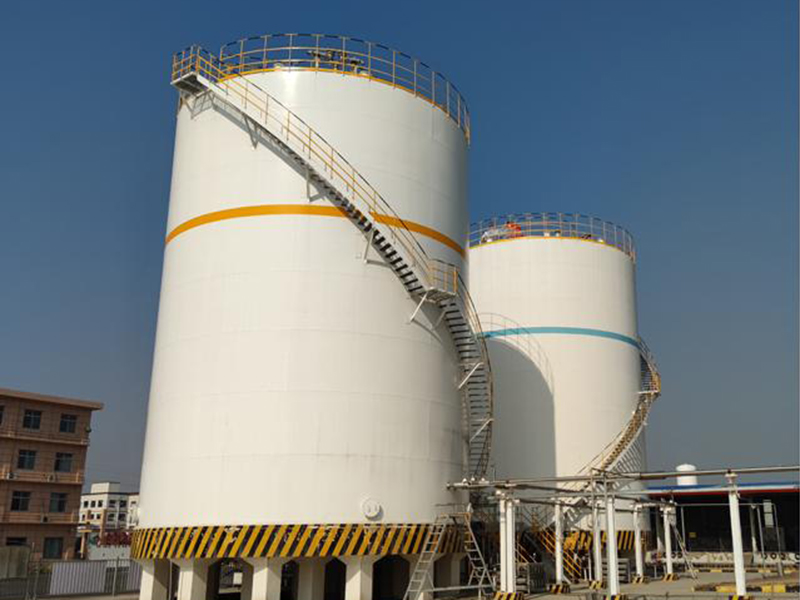

• Liquid oxygen is collected at the bottom of the distillation column and stored in vacuum-insulated cryogenic tanks to minimize evaporation.

• LOX is typically maintained at temperatures below -183°C and pressures of 1–1.5 bar for stability.

4. Vaporization and Distribution:

• For industrial use, LOX is vaporized into gaseous oxygen using ambient heat or electric vaporizers.

• The gaseous oxygen is delivered via pipelines to cutting/welding stations or filled into high-pressure cylinders.

◆◆ Why Liquid Oxygen for Metal Cutting and Welding? ◆◆

1. High Purity and Combustion Efficiency:

• LOX plants produce oxygen with 99.5–99.8% purity, ensuring optimal combustion in oxy-fuel processes.

• High-purity oxygen increases flame temperature (up to 3,500°C for oxy-acetylene), enabling faster cutting and cleaner welds.

2. Bulk Storage and Cost Savings:

• Liquid oxygen has a high storage density (1 liter of LOX ≈ 840 liters of gaseous oxygen), reducing storage space and transportation costs.

• On-site production eliminates reliance on third-party gas suppliers, lowering long-term operational expenses.

3. Consistency and Safety:

• Controlled on-site production ensures a stable oxygen supply, critical for continuous industrial operations.

• LOX systems are designed with safety features (e.g., pressure relief valves, leak detectors) to handle cryogenic hazards.

◆◆ Applications in Metalworking ◆◆

1. Oxy-Fuel Cutting:

• Oxygen is mixed with fuel gas to create a high-velocity flame for cutting thick steel plates (e.g., shipbuilding, construction).

• Example: Oxy-acetylene cutting relies on oxygen to oxidize and melt metal, blown away by the gas stream.

2. Welding and Brazing:

• Oxygen enhances flame intensity for welding and brazing non-ferrous metals (e.g., copper, aluminum).

• Used in repair workshops, automotive manufacturing, and pipeline construction.

3. Scarfing and Gouging:

• Oxygen jets remove surface defects from steel billets or weld seams in foundries and metal fabrication plants.

◆◆ Advantages of Liquid Oxygen Plants ◆◆

• Scalability: Suitable for large-scale operations like steel mills or aerospace manufacturing.

• Flexibility: Can supply both liquid and gaseous oxygen based on demand.

• Reduced Waste: Excess LOX can be stored or sold to other industries (e.g., medical, wastewater treatment).

◆◆ Challenges ◆◆

• High Energy Consumption: Cryogenic air separation requires significant electricity for cooling and compression.

• Safety Risks: Liquid oxygen is highly reactive; contact with organic materials or hydrocarbons can cause explosions.

• Infrastructure Costs: Cryogenic storage tanks and pipelines require substantial capital investment.

◆◆ Comparison with Alternatives ◆◆

• Gaseous Oxygen Cylinders: Suitable for small workshops but costly and logistically challenging for large-scale users.

• Pressure Swing Adsorption (PSA) Oxygen Generators: Produce lower-purity oxygen (90–95%) and are limited to medium-scale applications.

Summary: Liquid oxygen plants are essential for industries requiring high-purity oxygen in bulk, such as metal cutting and welding. By leveraging cryogenic air separation, these facilities provide a reliable, cost-effective oxygen supply that enhances process efficiency and safety. While initial setup costs and energy demands are high, the long-term benefits in productivity and operational control make LOX plants indispensable for heavy industries.

◆◆ RFQ ◆◆

1. Are you the manufacturer of this equipment？

Yes, we are an experienced manufacturer specializing in this field for 25 years.

2. Can the system be customized to meet specific requirements？

We provide custom-engineered solutions for different applications.

3. Have your products been deployed in global markets?

Yes, we have successfully supplied our air separation plants to over 50 countries worldwide, complying with international standards like ASME.

4. What after-sales services do you provide?

We offer comprehensive after-sales support including:

✔ Technical Consultation - 24/7 expert guidance

✔ Remote Monitoring - Real-time system performance tracking

✔ Maintenance Packages - Scheduled inspections & consumable replacements

✔ On-site Service -Engineer oversea service available

✔ Spare Parts Supply - Original components with 18-month warranty

✔ Operator Training - Customized programs for client's technical team

5. Do you offer technical support services?

We cordially invite you to visit our manufacturing facility or participate in our online technical exchange seminar for detailed discussions.

We welcome you to reach out to our technical specialists for detailed consultations and customized solutions.
