Argon Recovery Unit Using Cryogenic Technology

◆◆ Key Applications ◆◆

1. Steel Industry:

Recovers argon from Basic Oxygen Furnace (BOF) and Electric Arc Furnace (EAF) exhaust gases, where argon is used as a shielding gas in ladle refining.

2. Semiconductor Production:

Purifies argon for use in crystal growth (e.g., silicon ingots) and sputtering processes.

3. Metal Heat Treatment:

Recycles argon from annealing and welding atmospheres to maintain inert environments.

4. Chemical Processing:

Recovers argon from specialty gas production or ammonia synthesis byproduct streams.

5. Environmental Sustainability:

Captures argon from industrial emissions, reducing greenhouse gas footprints.

◆◆ Technology and Features ◆◆

1. Cryogenic Separation Process:

Feed Gas Compression and Pre-Treatment:

• Raw gas mixtures are compressed and passed through adsorbent beds to remove moisture, CO₂, and hydrocarbons.

Cryogenic Cooling and Liquefaction:

• The gas is cooled to -185°C using multi-stage heat exchangers, liquefying argon and other condensable gases.

Fractional Distillation:

• A cryogenic distillation column separates argon from nitrogen and oxygen based on boiling point differences (Ar: -185.8°C, O₂: -183°C, N₂: -195.8°C).

Final Purification:

• Residual impurities (<1 ppm) are removed via catalytic converters or molecular sieves.

2. System Components:

• Cryogenic Distillation Column: Constructed from stainless steel or aluminum alloys for corrosion resistance at ultra-low temperatures.

• Turboexpanders: Recover energy from high-pressure gas streams to power compressors, reducing energy consumption by 20–25%.

• Vacuum-Insulated Cold Box: Minimizes heat ingress to maintain process efficiency.

• Automated Control System: PLC/SCADA interfaces for real-time monitoring of flow rates, purity, and pressure.

3. Energy Efficiency:

• Heat Integration: Waste heat from compressors is reused to pre-cool incoming gases.

• Variable Load Operation: Adjusts production based on real-time argon demand, avoiding energy waste.

4. Modular and Scalable Design:

• Skid-mounted or containerized configurations enable rapid deployment and capacity scaling (50–5,000 Nm³/h).

• Compatible with hybrid systems combining cryogenic and membrane technologies.

◆◆ Advantages ◆◆

• High Purity: Delivers argon purity up to 99.9999% (6N), meeting stringent industry standards (e.g., SEMI, ISO 14175).

• Cost Savings: Reduces argon procurement costs by up to 40% through recycling.

• Sustainability: Lowers carbon emissions by minimizing argon venting and virgin gas consumption.

• Reliability: Redundant systems and automated controls ensure uninterrupted operation.

• Low Maintenance: Durable materials and self-cleaning adsorbents extend service intervals.

◆◆ Visual Description (Text-Based) ◆◆

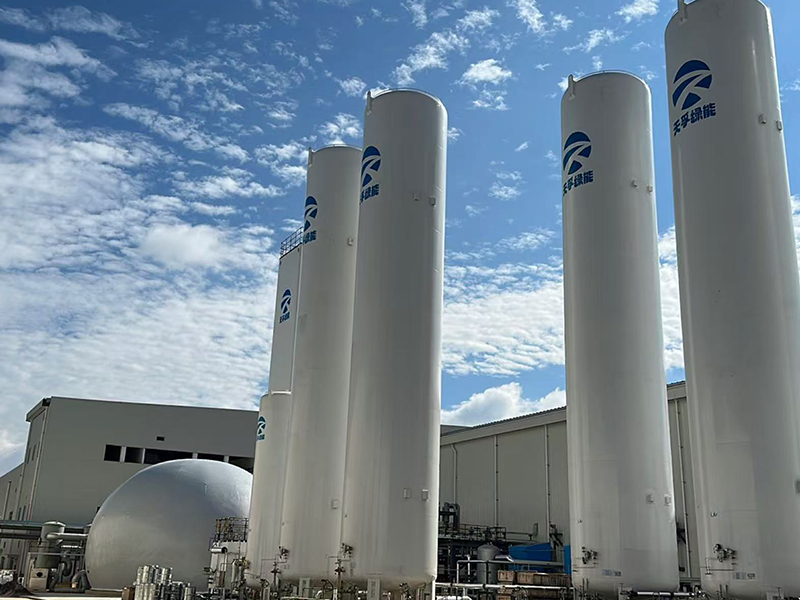

The Argon Recovery Unit typically includes:

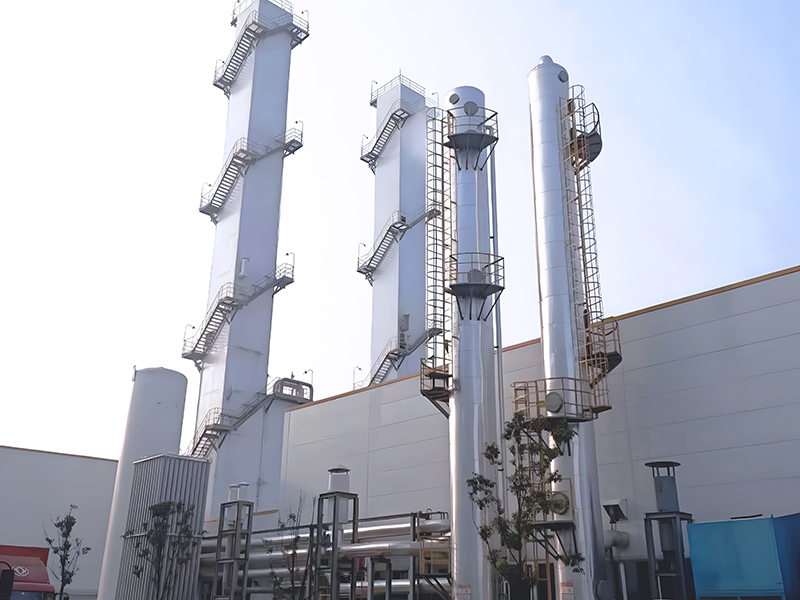

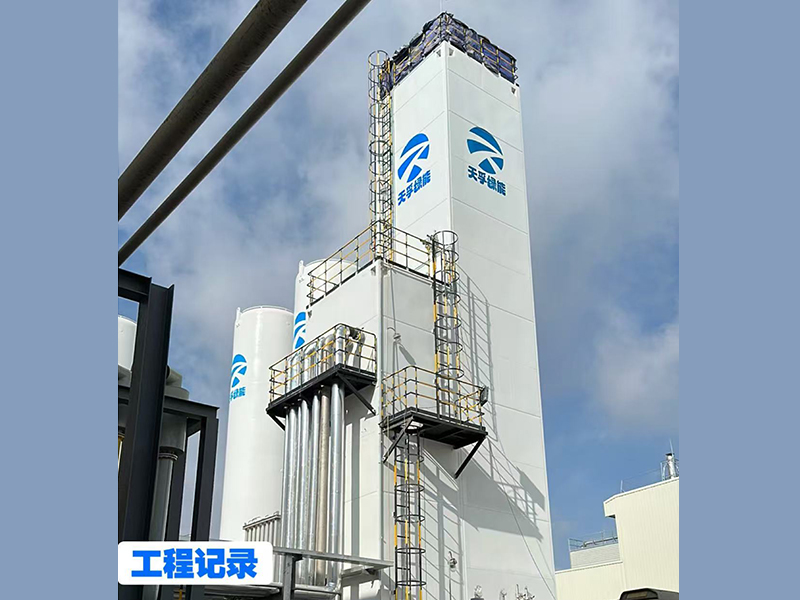

• A vertical cryogenic distillation column housed within a vacuum-insulated cold box.

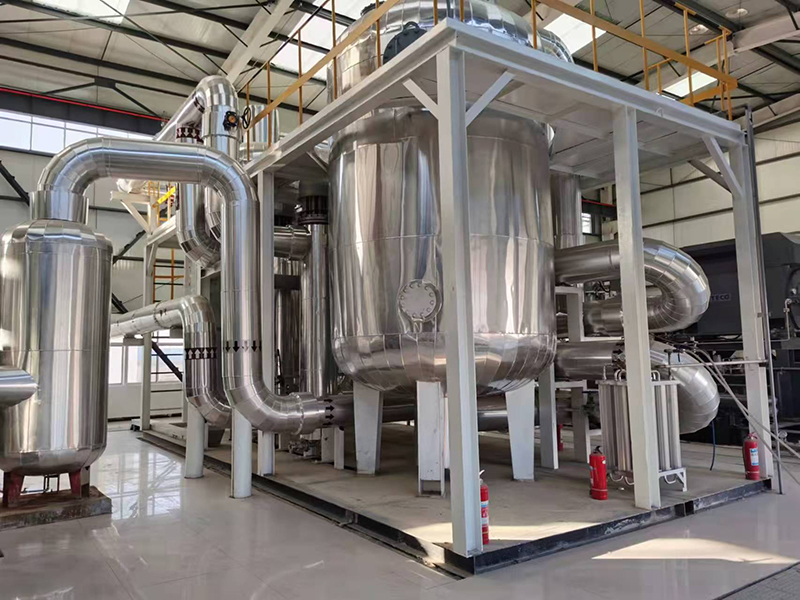

• Stainless steel piping networks with frost-resistant insulation.

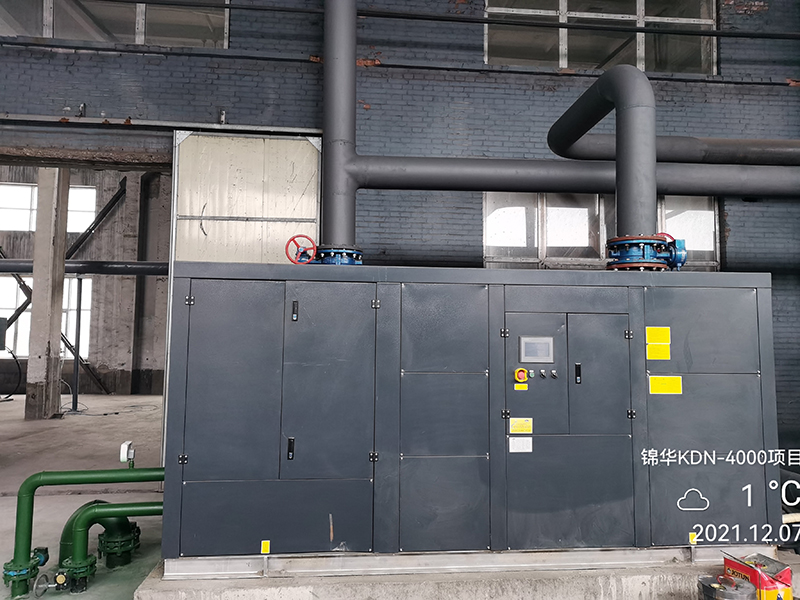

• Skid-mounted compressors and heat exchangers for compact footprint.

• Digital control panels displaying real-time purity analytics.

◆◆ Conclusion ◆◆

The cryogenic Argon Recovery Unit is a critical asset for industries reliant on high-purity argon, offering a cost-effective and eco-friendly solution for gas recycling. By integrating precision cryogenic separation with energy-efficient engineering, it addresses the dual challenges of resource conservation and operational efficiency. As industries increasingly prioritize circular economy principles, this system stands as a cornerstone for sustainable manufacturing and reduced environmental impact.

Note: For technical specifications or visual references, consult industrial gas system providers like Linde, Air Products, or Praxair.

◆◆ RFQ ◆◆

1. Are you the manufacturer of this equipment？

Yes, we are an experienced manufacturer specializing in this field for 25 years

2. Can the system be customized to meet specific requirements？

We provide custom-engineered solutions for different applications.

3. Have your products been deployed in global markets?

Yes, we have successfully supplied our air separation plants to over 50 countries worldwide, complying with international standards like ASME.

4. What after-sales services do you provide?

We offer comprehensive after-sales support including:

✔ Technical Consultation - 24/7 expert guidance

✔ Remote Monitoring - Real-time system performance tracking

✔ Maintenance Packages - Scheduled inspections & consumable replacements

✔ On-site Service -Engineer oversea service available

✔ Spare Parts Supply - Original components with 18-month warranty

✔ Operator Training - Customized programs for client's technical team

5. Do you offer technical support services?

We cordially invite you to visit our manufacturing facility or participate in our online technical exchange seminar for detailed discussions.

We welcome you to reach out to our technical specialists for detailed consultations and customized solutions.
