Automated Nitrogen Plant with Advanced Control Systems

◆◆ Core Technology: Automated Cryogenic Air Separation ◆◆

The plant uses liquefaction and fractional distillation at cryogenic temperatures (-196°C) to separate nitrogen from air. Automation optimizes each stage:

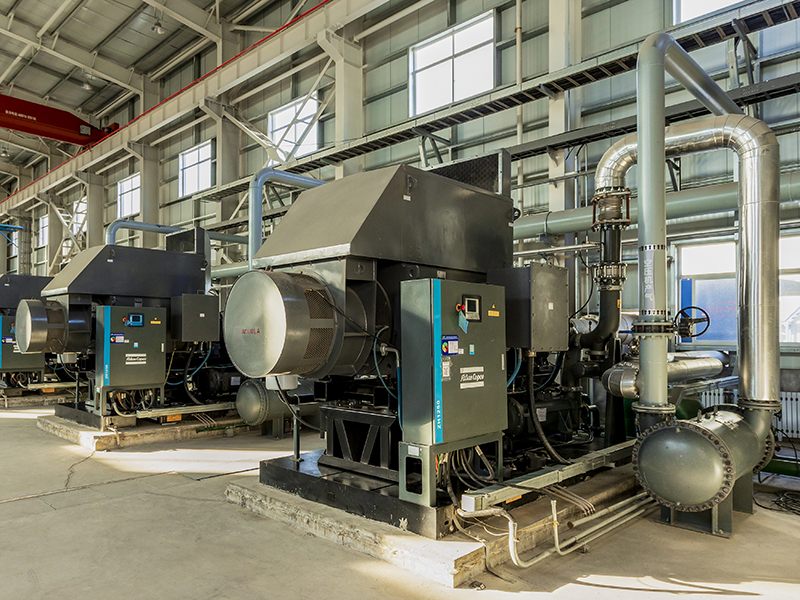

• Air Compression & Pre-Treatment:

• Sensors adjust compressor speed based on air quality (humidity, CO₂ levels).

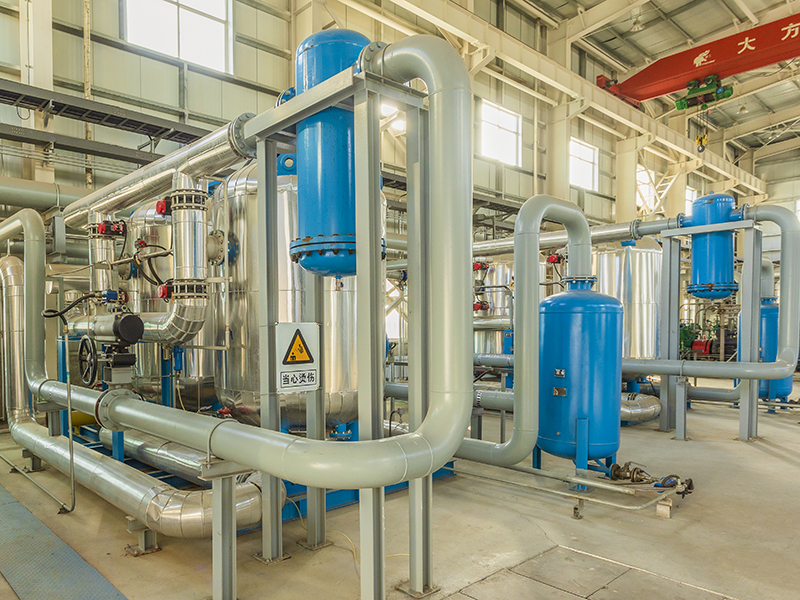

• AI-driven molecular sieves auto-regenerate to maintain impurity removal efficiency.

• Liquefaction & Distillation:

• Dynamic Temperature/Pressure Control: Algorithms fine-tune heat exchangers and expansion turbines to stabilize distillation column operations.

• Real-Time Purity Adjustment: Gas analyzers monitor nitrogen output and adjust reflux ratios to maintain target purity (e.g., 99.9995%).

• Liquid Nitrogen Storage:

• Automated fill-level management prevents overpressure or boil-off losses.

◆◆ Advanced Control Systems ◆◆

Key components enabling automation in cryogenic plants:

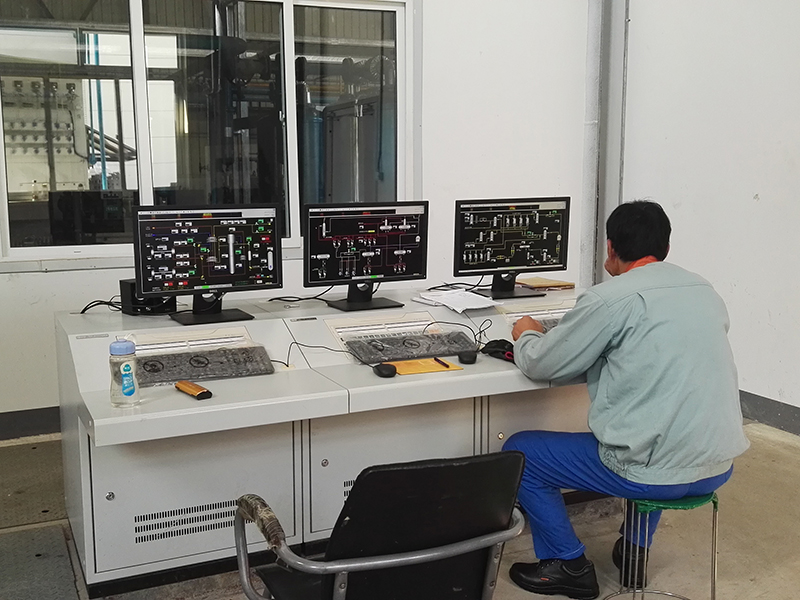

• Distributed Control System (DCS):

• Coordinates subsystems (compressors, distillation columns, storage) for seamless operation.

• Predictive Maintenance Modules:

• Vibration sensors on turbines detect early mechanical wear.

• Thermal cameras monitor insulation integrity in cryogenic pipelines.

• Adaptive Process Optimization:

• Machine learning models analyze historical data to optimize energy use during peak/off-peak hours.

• Digital twins simulate process changes (e.g., air feed variations) to pre-adjust parameters.

• Safety Automation:

• Emergency shutdown (ESD) systems trigger if oxygen levels exceed thresholds or leaks are detected.

• Auto-purge sequences clear pipelines before maintenance.

◆◆ Key Advantages Over Manual Cryogenic Plants ◆◆

• Purity Stability: Maintains ≤1 ppm oxygen residuals despite air composition fluctuations.

• Energy Efficiency: Reduces power consumption by 10–15% via optimized cooling cycles.

• Faster Response to Demand Shifts: Automatically scales production up/down without manual intervention.

• Reduced Human Error: Critical phase transitions (liquid/gas) are managed algorithmically.

• Remote Operation: PLC  systems enable off-site monitoring and control, ideal for hazardous environments.

◆◆ Applications ◆◆

Automated cryogenic nitrogen plants are critical for industries requiring ultra-pure, high-volume nitrogen:

• Semiconductor Fabrication: Precise inert atmospheres for wafer production.

• LNG Processing: Inerting storage tanks with zero tolerance for oxygen.

• Aerospace: Automated nitrogen filling for rocket fuel systems.

◆◆ Challenges Mitigated by Automation ◆◆

• Energy Intensity:  Auto balances compressor loads and liquefaction rates to minimize waste.

• Thermal Stress: Predictive algorithms prevent rapid temperature swings in cryogenic equipment.

• Startup/Shutdown Complexity: Automated sequences standardize these high-risk phases.

◆◆ Comparison with Automated PSA Systems ◆◆

Summary: An automated cryogenic nitrogen plant leverages advanced control systems to master the intricacies of cryogenic air separation. While inherently complex and energy-intensive, automation transforms it into a reliable, high-precision solution for industries demanding ultra-pure nitrogen at scale. Its ability to integrate with multi-product workflows and adapt to dynamic operational needs makes it indispensable for sectors like energy, electronics, and aerospace.

◆◆ RFQ ◆◆

1. Are you the manufacturer of this equipment？

Yes, we are an experienced manufacturer specializing in this field for 25 years.

2. Can the system be customized to meet specific requirements？

We provide custom-engineered solutions for different applications.

3. Have your products been deployed in global markets?

Yes, we have successfully supplied our air separation plants to over 50 countries worldwide, complying with international standards like ASME.

4. What after-sales services do you provide?

We offer comprehensive after-sales support including:

✔ Technical Consultation - 24/7 expert guidance

✔ Remote Monitoring - Real-time system performance tracking

✔ Maintenance Packages - Scheduled inspections & consumable replacements

✔ On-site Service -Engineer oversea service available

✔ Spare Parts Supply - Original components with 18-month warranty

✔ Operator Training - Customized programs for client's technical team

5. Do you offer technical support services?

We cordially invite you to visit our manufacturing facility or participate in our online technical exchange seminar for detailed discussions.

We welcome you to reach out to our technical specialists for detailed consultations and customized solutions.
