Have you ever wondered how we get pure oxygen or nitrogen from the air? Air separation units make this possible. These units separate air into its main components for many uses.

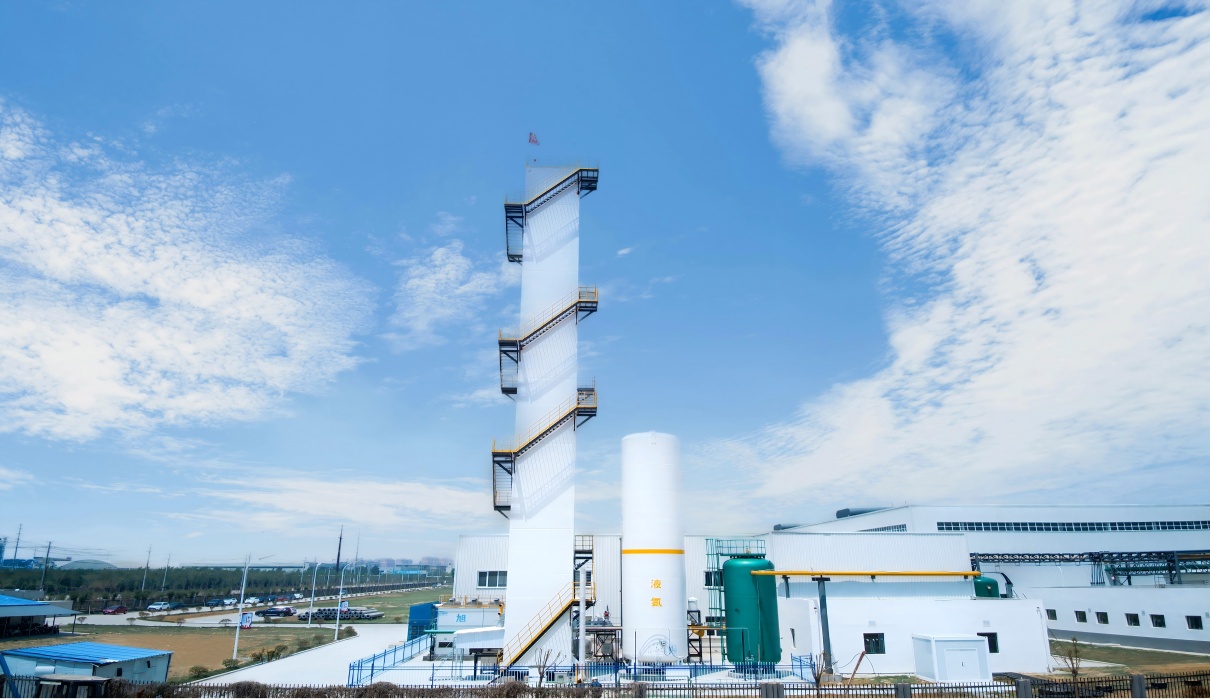

An air separation unit (ASU) is a machine that divides air into oxygen, nitrogen, and argon. ASUs are vital for industries and healthcare. Air is mostly nitrogen and oxygen, which the ASU separates efficiently.
In this post, you’ll learn what an air separation unit is, why it matters, and how it works to supply pure gases.
Air Separation Units (ASUs) rely mainly on cryogenic distillation to separate air into oxygen, nitrogen, and argon. This method uses very low temperatures to liquefy air components, exploiting their different boiling points to isolate each gas.
Cryogenic distillation cools air until it becomes liquid. Because oxygen, nitrogen, and argon liquefy at distinct temperatures, they can be separated by fractional distillation. The process involves repeated vaporization and condensation inside tall distillation columns, where gases separate based on volatility.
Each major air component has a unique boiling point:
Oxygen: -183°C
Argon: -186°C
Nitrogen: -196°C
By cooling air below these temperatures, nitrogen liquefies last due to its lowest boiling point. This difference allows sequential separation in the distillation columns.
The temperature gradient inside the distillation columns enables selective vaporization and condensation. Nitrogen, with the lowest boiling point, vaporizes and rises, while oxygen and argon condense and collect lower in the column. This counterflow of vapor and liquid phases enriches the desired gases at different heights, achieving high purity.
The Joule-Thomson effect is crucial for reaching cryogenic temperatures. When compressed air expands through a valve or turbine without heat exchange, its temperature drops. This cooling effect is harnessed repeatedly in cycles to pre-cool incoming air and maintain the low temperatures needed for liquefaction.
In practice, compressed air passes through expansion devices, cooling it significantly. The cold gas then cools the incoming compressed air via heat exchangers, creating a regenerative cooling loop. This efficient cycle reduces energy use and achieves the extreme cold required for air separation.
An Air Separation Unit (ASU) is a complex system designed to separate atmospheric air into oxygen, nitrogen, and argon. It combines several key components working together to ensure efficient, continuous gas production at high purity. Let’s explore these components and their roles.
The process begins by drawing ambient air into the ASU. Since air contains dust and other particles, it first passes through filters that remove these impurities. This step protects the equipment downstream and ensures smooth operation. Clean air intake is essential to maintain system reliability and prevent damage to sensitive components.
Next, the filtered air is compressed to high pressure using multi-stage compressors. Compression is necessary because liquefying air requires it to be at elevated pressures. However, compressing air generates heat, which must be removed before the air moves further.
Pre-cooling systems lower the temperature of the compressed air using heat exchangers and refrigeration units. This cooling reduces the load on the cryogenic section, making liquefaction more energy-efficient. Pre-cooling also condenses some water vapor, which is then removed to prevent ice formation in cold parts of the ASU.
Before air enters the cryogenic distillation columns, it must be purified to remove water vapor, carbon dioxide, and hydrocarbons. These impurities can freeze and block equipment at cryogenic temperatures, causing operational issues.
Molecular sieve beds filled with special adsorbent materials trap these contaminants. The sieves work in cycles, alternating between adsorption and regeneration, ensuring continuous purification. This purification step is critical for maintaining high gas purity and protecting the distillation system.
The heart of the ASU is the cryogenic distillation section. Here, the purified, compressed, and cooled air is further chilled until it liquefies. The liquefied air enters tall distillation columns where temperature and pressure gradients separate gases based on their boiling points.
Nitrogen, oxygen, and argon separate into different layers. Nitrogen vapor rises to the top, oxygen collects at the bottom, and argon is drawn from intermediate points. Liquefiers maintain the low temperatures needed to keep these gases in liquid form during separation.
After separation, the gases undergo additional purification to meet specific quality standards. Oxygen may be further purified for medical or industrial use, while nitrogen and argon are collected and conditioned for delivery.
These stages ensure the final products have the required purity levels, free from residual contaminants.

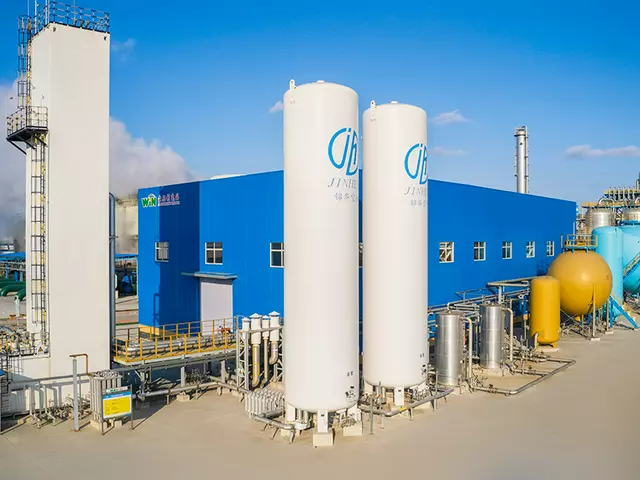

Finally, the purified gases are either stored as liquids in cryogenic tanks or compressed into gas cylinders. They are then transported via pipelines or trucks to end-users in industries like healthcare, metallurgy, electronics, and food processing.
Air Separation Units (ASUs) come in different types, each suited for specific needs based on purity, scale, and energy efficiency. The main categories include cryogenic ASUs and non-cryogenic methods like Pressure Swing Adsorption (PSA) and membrane separation. Understanding these technologies helps industries choose the right system for their applications.
Cryogenic ASUs use very low temperatures to liquefy air and separate its components by distillation. This method produces gases of very high purity—often above 99.5%—making it ideal for industries requiring pure oxygen, nitrogen, or argon. These units operate at large scales, often producing hundreds or thousands of tons per day.
Key features of cryogenic ASUs include:
Use of tall distillation columns for fractional separation
High energy consumption due to refrigeration needs
Capability to produce liquid and gaseous products
Suitable for steel, chemical, and healthcare industries
Because of their size and complexity, cryogenic ASUs require significant capital investment and infrastructure. However, their efficiency improves as production scale increases, making them cost-effective for large operations.
Non-cryogenic technologies offer alternatives to traditional cryogenic ASUs. They are generally used for smaller scale or lower purity requirements.
Pressure Swing Adsorption (PSA):
PSA separates gases by cycling air through adsorbent materials that trap certain molecules at high pressure and release them at low pressure. This method is commonly used to produce oxygen or nitrogen at purities ranging from 90% to 99.5%. PSA systems operate at ambient temperature and consume less energy than cryogenic units.
Membrane Separation:
Membrane systems use selective barriers that allow certain gases to pass faster than others. These units are compact and have low energy demands but usually produce gases at lower purity levels (often under 95%). They are suitable for applications like inerting or simple oxygen enrichment.
Feature | Cryogenic ASUs | Non-Cryogenic (PSA, Membranes) |
|---|---|---|
Purity | Very high (>99.5%) | Moderate to high (90-99.5%) |
Scale | Large (hundreds to thousands TPD) | Small to medium |
Energy Consumption | High | Lower |
Capital Cost | High | Lower |
Product Form | Liquid and gas | Gas only |
Complexity | High | Lower |
Common Applications | Steel, chemical, healthcare | Medical oxygen, food packaging, inerting |
Cryogenic ASUs offer unmatched purity and large volume production but come with high energy costs and complex operation. They are indispensable for industries where gas quality is critical.
Non-cryogenic methods provide flexibility, lower initial costs, and reduced energy use. However, they cannot match the purity or scale of cryogenic systems, limiting their use to specific applications.
Many industries use a combination of both technologies, choosing cryogenic ASUs for bulk, high-purity needs and PSA or membrane systems for on-site or smaller-scale gas supply.
Air Separation Units (ASUs) produce gases like oxygen, nitrogen, and argon that serve vital roles across many industries and healthcare. Each gas has unique properties making it indispensable in specific applications.
Oxygen is crucial in steelmaking. It boosts furnace combustion efficiency, allowing faster melting and refining of metals. Adding oxygen reduces fuel use and cuts emissions, making steel production cleaner and more cost-effective.
In healthcare, oxygen supports life-saving treatments. Hospitals rely on high-purity medical oxygen for respiratory therapy, anesthesia, and emergency care. ASUs supply oxygen that meets strict purity standards to ensure patient safety and treatment effectiveness.
Nitrogen acts as an inert gas in many processes. The chemical industry uses nitrogen to create safe, oxygen-free environments for reactions and storage, preventing unwanted combustion or degradation.
In food processing, nitrogen preserves freshness by displacing oxygen in packaging, slowing spoilage. Electronics manufacturers use nitrogen to create controlled atmospheres during sensitive production steps, protecting components from oxidation.
Argon is a noble gas valued for its inertness. In welding, it shields molten metal from air, preventing oxidation and improving weld quality. Lighting industries use argon in bulbs to extend lifespan and enhance brightness.
Electronics benefit from argon’s purity in manufacturing processes, especially for semiconductors, where contamination must be minimized.
ASU gases also support environmental and energy sectors. Oxygen improves combustion in power plants and waste treatment, increasing efficiency and reducing harmful emissions. Nitrogen is used for purging and inerting in pipelines and storage tanks, ensuring safety and preventing corrosion.
In emerging technologies, such as carbon capture and hydrogen production, these gases play growing roles, highlighting ASUs’ importance in sustainable energy solutions.
Optimizing an Air Separation Unit (ASU) is key to ensuring it runs efficiently and meets the demands of various applications. Several factors influence performance, including gas purity, flow rate, energy consumption, molecular sieve selection, and monitoring systems. Let's explore these elements in detail.
Different industries require gases at specific purity levels and flow rates. For example, medical oxygen demands extremely high purity—often above 99.999%—to ensure patient safety. Achieving this requires additional purification steps and tighter control of the distillation process.
On the other hand, nitrogen used for inerting in chemical plants may only need moderate purity. This allows the ASU to operate with less energy-intensive processes. Flow rates also vary widely: a large steel mill will need a continuous, high volume of oxygen, while a smaller electronics manufacturer might require less but equally pure nitrogen.
Matching purity and flow rate to application needs avoids over-engineering and reduces operational costs. It also helps maintain consistent gas quality, which is crucial for sensitive industrial processes.
ASUs consume significant energy, mainly due to air compression and cryogenic cooling. Energy efficiency directly affects operational costs and environmental impact.
Several measures improve energy use:
Advanced air compressors: Multi-stage compressors with optimized designs reduce power consumption.
Heat recovery systems: These capture waste heat from compressors and other parts, reusing it to pre-heat or pre-cool streams.
Optimized refrigeration cycles: Using efficient expansion turbines and heat exchangers lowers refrigeration energy needs.
Process integration: Coupling steps like compression, cooling, and distillation minimizes energy losses.
Continuous monitoring and fine-tuning of these systems can lead to substantial energy savings.
Molecular sieves remove water vapor, carbon dioxide, and hydrocarbons before cryogenic separation. Selecting the right sieve material is vital for reliable purification and ASU longevity.
Different molecular sieves vary in:
Adsorption capacity: How much impurity they can trap.
Selectivity: Ability to target specific contaminants.
Regeneration efficiency: Energy needed to clean and reuse the sieve.
Choosing a sieve suited to the local air composition and desired gas purity reduces fouling, downtime, and energy costs during regeneration. It also ensures stable, high-quality gas output.
Modern ASUs rely on sophisticated monitoring and control systems to maintain stable operation. Sensors measure pressure, temperature, flow rates, and impurity levels throughout the unit.
Automated control systems adjust compressor speeds, cooling rates, and distillation parameters in real time. This responsiveness helps:
Maintain gas purity within tight specifications.
Optimize energy consumption.
Detect and address faults early.
Minimize downtime and maintenance costs.
Remote monitoring and data analytics further enhance operational reliability and allow predictive maintenance.
Air Separation Units (ASUs) are evolving fast, driven by the need for better efficiency, sustainability, and new uses. Modern ASUs now include technologies that reduce energy use and improve gas purity while adapting to smaller-scale and flexible operations.
New materials and optimized designs help ASUs cut energy consumption. For example, better heat exchangers and improved distillation column packing reduce thermal losses. Advanced refrigeration cycles use less power, lowering operational costs and environmental impact.
Researchers also develop more selective molecular sieves. These adsorbents remove impurities more efficiently, extend service life, and reduce the energy needed for regeneration. This means ASUs maintain high gas purity while saving energy.
Some ASUs now integrate renewable energy sources, such as solar or wind power, to lower their carbon footprint. This shift supports global sustainability goals and helps industries meet stricter environmental standards.
Automation plays a big role in modern ASUs. Smart sensors monitor pressure, temperature, and flow rates in real time. Artificial intelligence (AI) analyzes data to optimize process parameters automatically.
Remote monitoring systems allow operators to track ASU performance from anywhere. Predictive maintenance powered by AI identifies potential issues before they cause downtime. This boosts reliability and cuts maintenance costs.
Automated control systems also adjust energy use dynamically, balancing gas purity and flow rates with power consumption. This flexibility improves efficiency and adapts to changing demand.
Smaller, modular ASUs are gaining popularity. These compact units can be installed on-site at factories or hospitals, reducing the need for long gas transport. Modular designs allow easy capacity expansion by adding more units.
This approach suits remote locations or industries needing flexible gas supply. It also lowers capital costs and installation time compared to large, centralized ASUs.
ASU technology is expanding beyond traditional uses. It supports hydrogen production by providing high-purity oxygen for processes like steam methane reforming and electrolysis.
In carbon capture, utilization, and storage (CCUS), ASUs supply oxygen to oxy-fuel combustion systems, enabling cleaner power generation and easier CO₂ separation. These applications are key to decarbonizing heavy industries and power plants.
As demand for clean energy grows, ASUs will play a larger role in global efforts to reduce greenhouse gas emissions.
Air Separation Units play a vital role in producing high-purity gases like oxygen, nitrogen, and argon for many industries. They support steel manufacturing, healthcare, electronics, and environmental sectors by ensuring reliable gas supply. Innovations continue to improve ASU efficiency, sustainability, and flexibility, meeting growing industrial demands. Zhejiang Jinhua Air Separation Equipment Co., Ltd. offers advanced ASU products that deliver energy-efficient, high-quality gas separation solutions, helping businesses optimize operations and reduce costs. Their expertise ensures dependable performance and tailored service for diverse applications.
A: An air separation unit (ASU) separates atmospheric air into oxygen, nitrogen, and argon using cryogenic distillation, cooling air to liquefy components based on their boiling points.
A: Temperature differences enable selective vaporization and condensation in the ASU’s distillation columns, allowing efficient separation of gases like oxygen, nitrogen, and argon.
A: Costs vary widely based on size and technology; cryogenic ASUs have high capital costs due to complexity and scale but offer high purity and volume.
A: ASUs provide high-purity industrial gases essential for healthcare, manufacturing, and environmental applications, improving efficiency and safety.
A: Cryogenic ASUs offer higher purity and scale but consume more energy, while non-cryogenic units like PSA are smaller, less costly, and use less energy but yield lower purity.
A: Impurity buildup, inefficient cooling, or molecular sieve degradation can reduce ASU efficiency and gas purity, requiring regular maintenance and monitoring.
