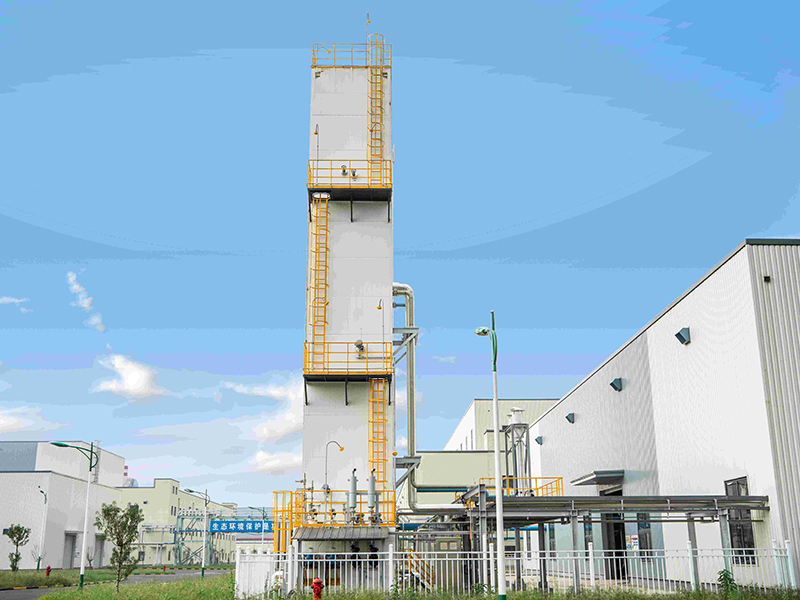

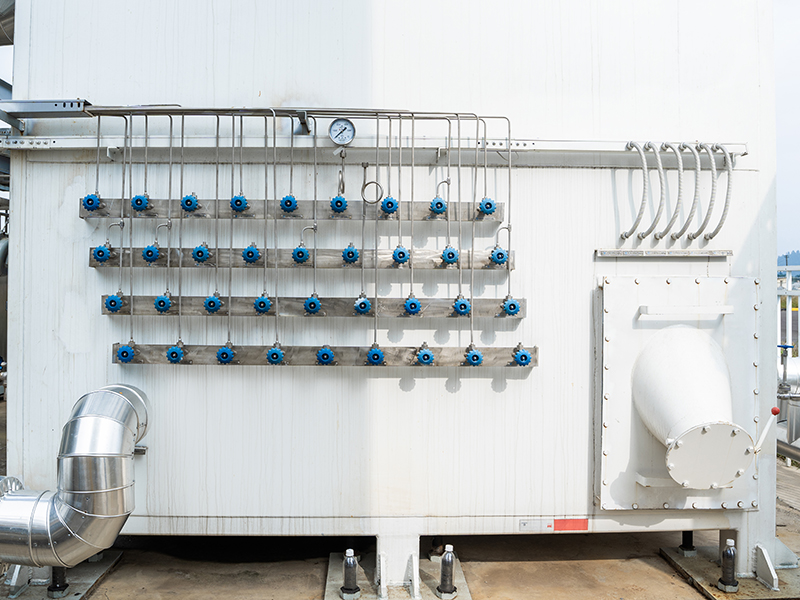

Cryogenic Nitrogen Gas Plant for Large-Scale Applications

◆◆ Key Components and Process Flow ◆◆

1. Air Intake and Compression:

• Ambient air is drawn into the system, filtered to remove particulates, and compressed to high pressures (5–10 bar).

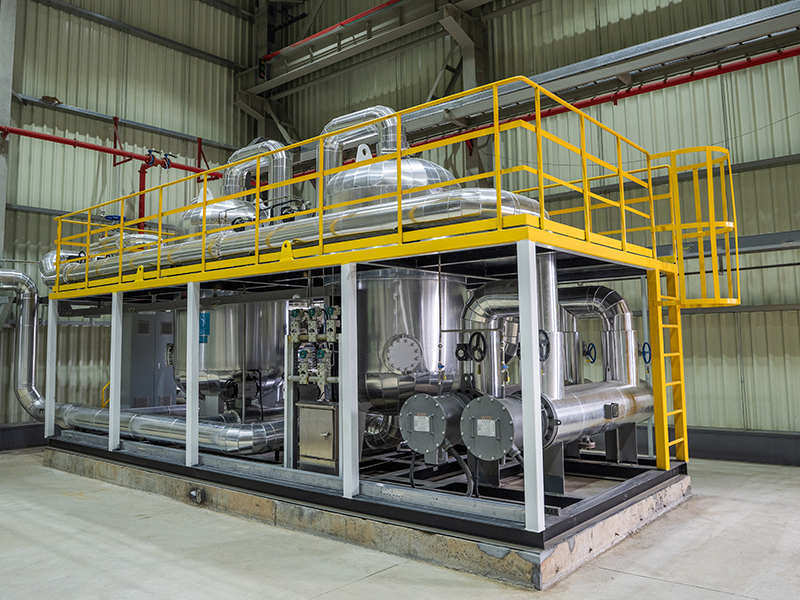

• Pre-treatment units (e.g., adsorbent beds or molecular sieves) remove moisture, CO₂, hydrocarbons, and other impurities.

2. Cryogenic Cooling and Liquefaction:

• The purified air is cooled to cryogenic temperatures (below -150°C) using multi-stage heat exchangers and turboexpanders.

• As the air liquefies, it enters a low-temperature distillation column (fractionation tower).

3. Fractional Distillation:

• Nitrogen (boiling point: -196°C) and oxygen (boiling point: -183°C) are separated based on their differing boiling points.

• High-purity nitrogen gas (up to 99.9995% purity) is extracted from the top of the column, while oxygen and rare gases (argon, neon) are collected as byproducts.

4. Liquefaction and Storage:

• Nitrogen can be stored as a liquid (LN₂) in vacuum-insulated cryogenic tanks at -196°C for bulk transportation or backup supply.

• For on-site use, LN₂ is vaporized into gaseous nitrogen (GAN) and distributed via pipelines.

◆◆ Why Cryogenic Technology for Large-Scale Nitrogen? ◆◆

• High Production Capacity: Cryogenic plants generate thousands of tons of nitrogen daily, ideal for industries like steel manufacturing or LNG terminals.

• Ultra-High Purity: Achieves ppm (parts per million) to ppb (parts per billion) impurity levels, critical for applications like aerospace welding or pharmaceutical inerting.

• Energy Efficiency at Scale: While energy-intensive, cryogenic distillation becomes cost-effective for large volumes compared to alternatives like Pressure Swing Adsorption (PSA).

◆◆ Major Industrial Applications ◆◆

1. Petrochemical and Oil & Gas:

• Inerting storage tanks and pipelines to prevent explosions.

• Purging reactors during maintenance or shutdowns.

2. Metal Processing:

• Shielding gases in high-precision welding (e.g., automotive, shipbuilding).

• Annealing and heat treatment of steel to prevent oxidation.

3. Food and Beverage:

• Modified atmosphere packaging (MAP) to extend shelf life.

• Cryogenic freezing for bulk food preservation.

4. Energy and Aerospace:

• Coolant for superconducting systems or hydrogen liquefaction.

• Inerting fuel tanks in rockets and aircraft.

◆◆ Advantages of Cryogenic Nitrogen Plants ◆◆

• Bulk Production: Economies of scale reduce per-unit nitrogen costs for high-demand users.

• Flexible Output: Can produce both gaseous and liquid nitrogen simultaneously.

• On-Site Reliability: Eliminates dependency on external suppliers, ensuring uninterrupted operations.

• Byproduct Utilization: Oxygen and argon can be captured and sold, enhancing cost recovery.

◆◆ Challenges ◆◆

• High Capital Costs: Requires significant investment in cryogenic infrastructure (e.g., distillation columns, storage tanks).

• Energy Consumption: Liquefaction demands substantial electricity, though advanced heat recovery systems mitigate this.

• Maintenance Complexity: Cryogenic systems need rigorous monitoring to prevent ice formation and ensure purity.

◆◆ Comparison with Alternatives ◆◆

1. PSA (Pressure Swing Adsorption):

• Better suited for small-to-medium volumes (e.g., labs, small factories).

• Lower purity (95–99.9%) compared to cryogenic systems.

2. Membrane Separation:

• Limited to low-purity applications (e.g., tire inflation, fire prevention).

Summary: Cryogenic nitrogen plants are the backbone of large-scale industries requiring massive, ultra-pure nitrogen supplies. By leveraging air liquefaction and fractional distillation, these facilities deliver unmatched efficiency and reliability for sectors where safety, precision, and volume are non-negotiable. While capital and energy costs are high, their long-term benefits in productivity and operational control make them indispensable for global industrial infrastructure.

◆◆ RFQ ◆◆

1. Are you the manufacturer of this equipment？

Yes, we are an experienced manufacturer specializing in this field for 25 years.

2. Can the system be customized to meet specific requirements？

We provide custom-engineered solutions for different applications.

3. Have your products been deployed in global markets?

Yes, we have successfully supplied our air separation plants to over 50 countries worldwide, complying with international standards like ASME.

4. What after-sales services do you provide?

We offer comprehensive after-sales support including:

✔ Technical Consultation - 24/7 expert guidance

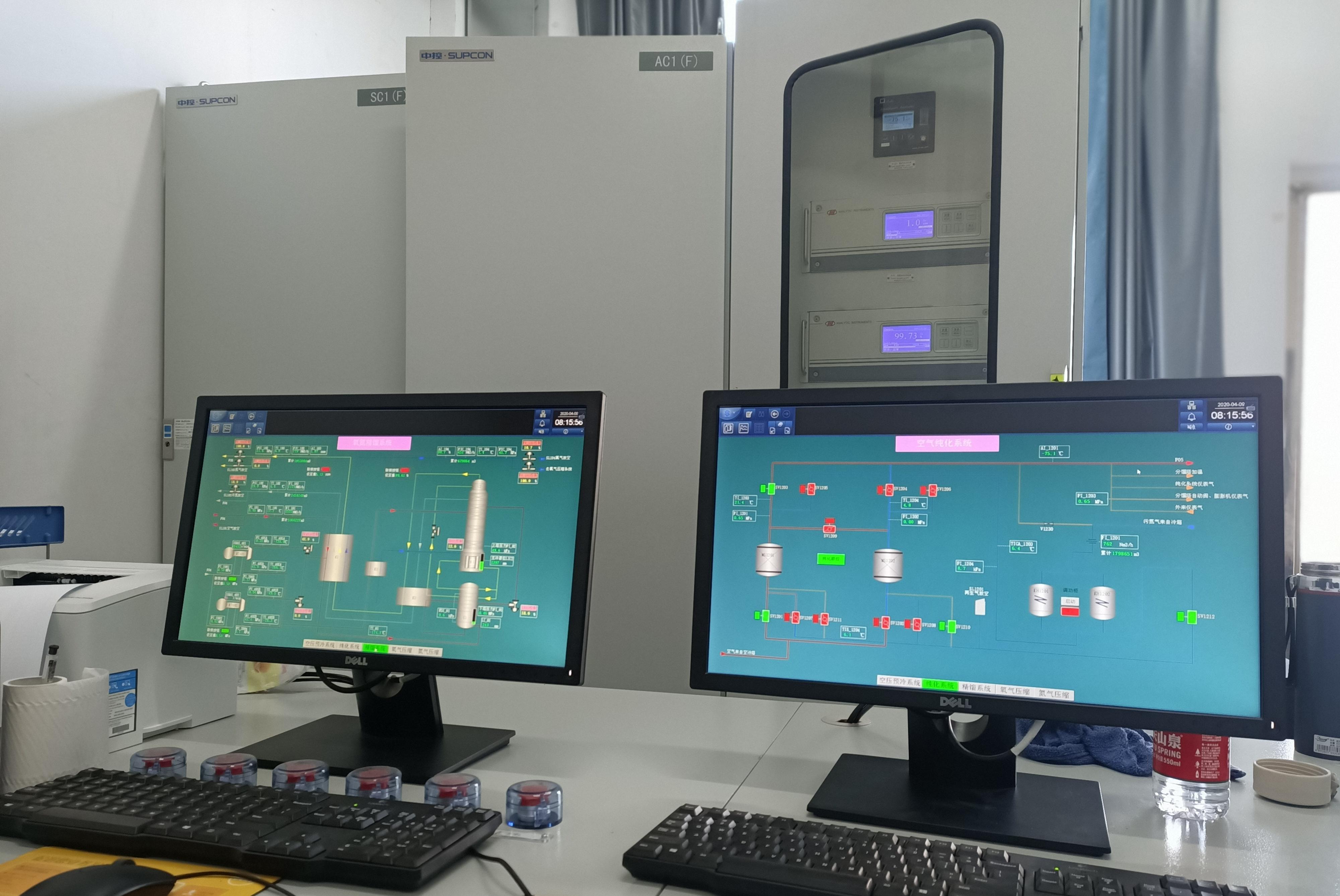

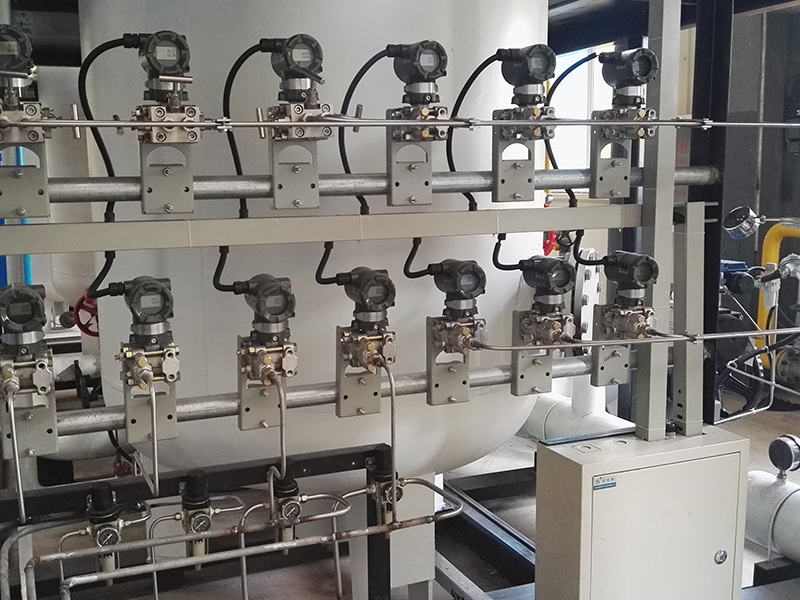

✔ Remote Monitoring - Real-time system performance tracking

✔ Maintenance Packages - Scheduled inspections & consumable replacements

✔ On-site Service -Engineer oversea service available

✔ Spare Parts Supply - Original components with 18-month warranty

✔ Operator Training - Customized programs for client's technical team

5. Do you offer technical support services?

We cordially invite you to visit our manufacturing facility or participate in our online technical exchange seminar for detailed discussions.

We welcome you to reach out to our technical specialists for detailed consultations and customized solutions.
