High-Performance Cryogenic Air Separation Plant for Steel Manufacturing

◆◆ Key Applications ◆◆

1. Blast Furnace Oxygen Enrichment:

• Injects high-purity oxygen to enhance combustion efficiency, reduce coke consumption, and accelerate iron ore smelting.

2. Basic Oxygen Furnace (BOF) Steelmaking:

• Supplies oxygen for oxidizing impurities (carbon, silicon, phosphorus) in molten iron, refining it into high-quality steel.

3. Electric Arc Furnace (EAF) Operations:

• Provides oxygen for scrap metal melting and slag foaming, improving energy efficiency and metal recovery.

4. Nitrogen Inerting:

• Delivers ultra-pure nitrogen for blanketing ladles, preventing oxidation during steel casting and heat treatment.

5. Combustion Optimization:

• Enhances fuel efficiency in reheating furnaces and annealing lines, reducing emissions and operational costs.

◆◆ Technology and Features ◆◆

1. Cryogenic Air Separation Process:

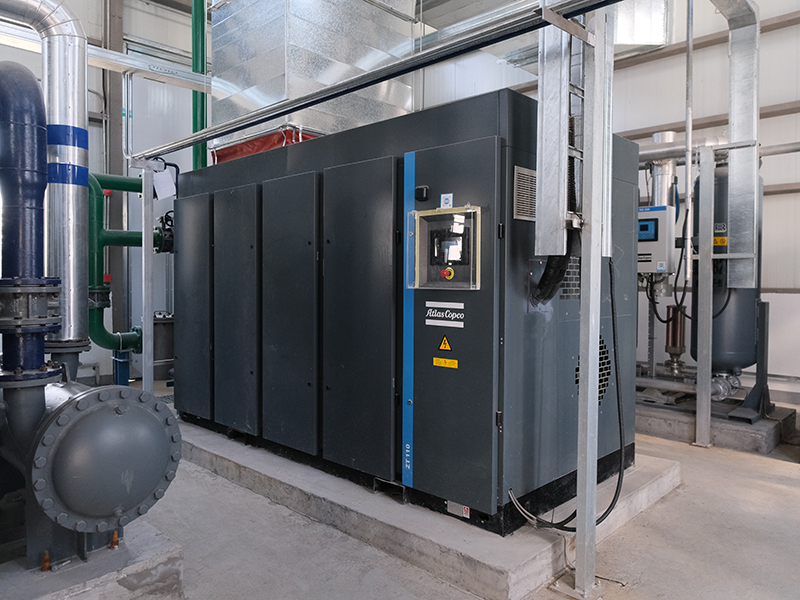

• Air Compression and Purification:

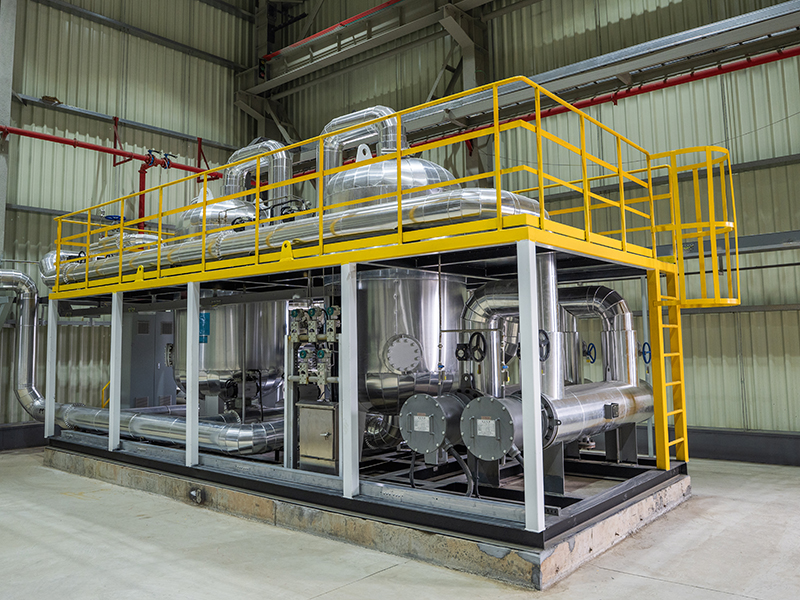

• Ambient air is filtered, compressed, and cooled to remove moisture, CO₂, and hydrocarbons via molecular sieves and adsorbent beds.

• Liquefaction and Distillation:

• Air is cooled to -185°C in multi-stage heat exchangers, forming a liquid air mixture.

• A dual-column distillation system separates oxygen and nitrogen:

• High-Pressure Column: Isolates nitrogen (boiling point: -195.8°C) from oxygen-rich liquid.

• Low-Pressure Column: Further refines oxygen (boiling point: -183°C) and extracts argon (optional).

• Product Compression and Storage:

• Gases are compressed or liquefied for storage, ensuring on-demand supply.

2. Advanced Components:

• Turboexpanders: Recover energy from high-pressure gas streams, reducing power consumption by 25–35%.

• Brazed Aluminum Heat Exchangers (BAHX): Maximize thermal efficiency in cryogenic environments.

• Vacuum-Insulated Cold Box: Minimizes heat ingress and operational energy losses.

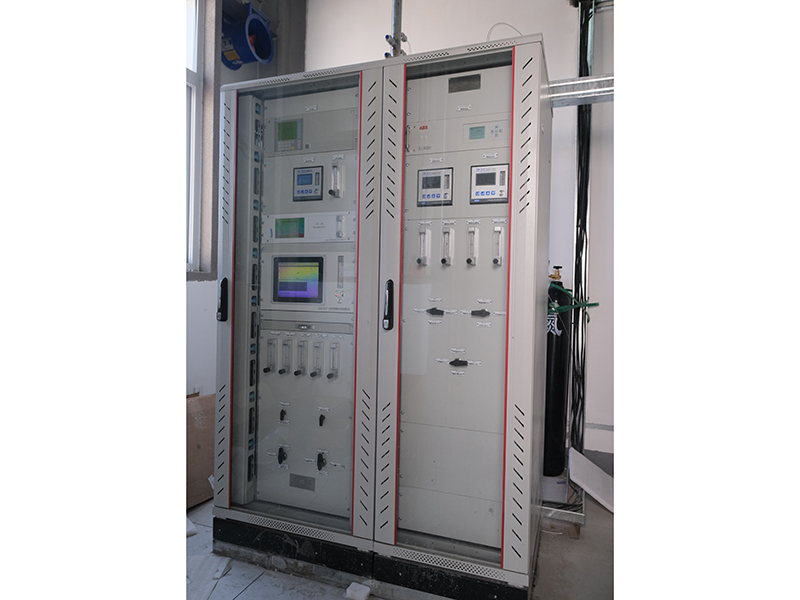

• Smart Automation:

• PLC/SCADA systems enable real-time monitoring of gas purity, pressure, and flow rates.

• Predictive maintenance algorithms detect equipment anomalies, preventing unplanned downtime.

3. Energy Efficiency and Sustainability:

• Waste Heat Recovery: Redirects compressor heat to pre-cool incoming air, cutting energy use.

• Variable Frequency Drives (VFDs): Dynamically adjust compressor loads to match production demand.

• Low-Emission Design: Reduces CO₂ emissions by optimizing combustion and minimizing gas venting.

4. Modular and Scalable Design:

• Skid-Mounted or Containerized Units: Facilitate rapid deployment in space-constrained or remote steel plants.

• Scalable Capacity: Ranges from 1,000–100,000 Nm³/h for oxygen and nitrogen, adaptable to small mills or mega steel complexes.

◆◆ Advantages ◆◆

• Ultra-High Purity: Oxygen (≥99.5%) and nitrogen (≥99.999%) meet ISO 8573 and ASTM standards for steelmaking.

• Operational Efficiency:

• Reduces coke consumption by 15–20% in blast furnaces.

• Lowers energy costs by 20–30% compared to traditional air separation units.

• Reliability: Redundant systems and 24/7 monitoring ensure uninterrupted gas supply.

• Sustainability: Supports carbon-neutral goals via energy recovery and reduced emissions.

• Cost Savings: Eliminates reliance on third-party gas suppliers and lowers logistics expenses.

◆◆ Visual Description (Text-Based) ◆◆

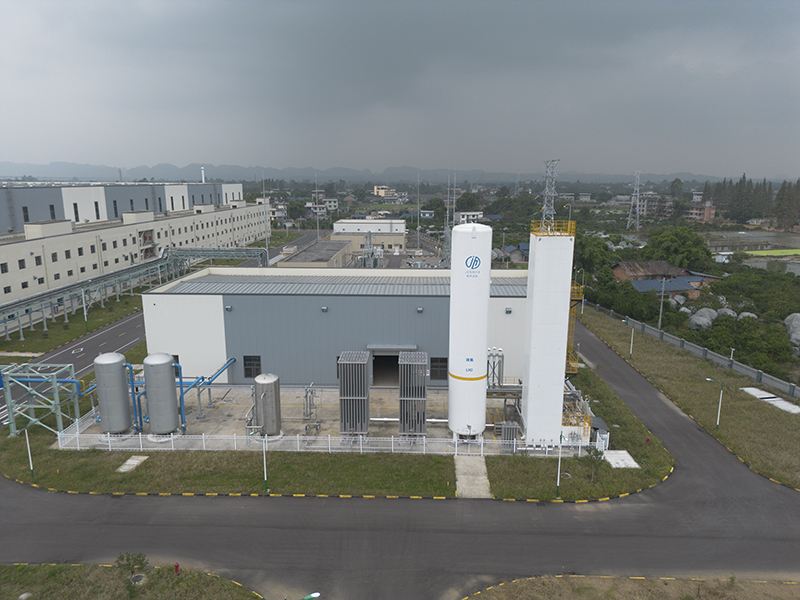

The plant typically includes:

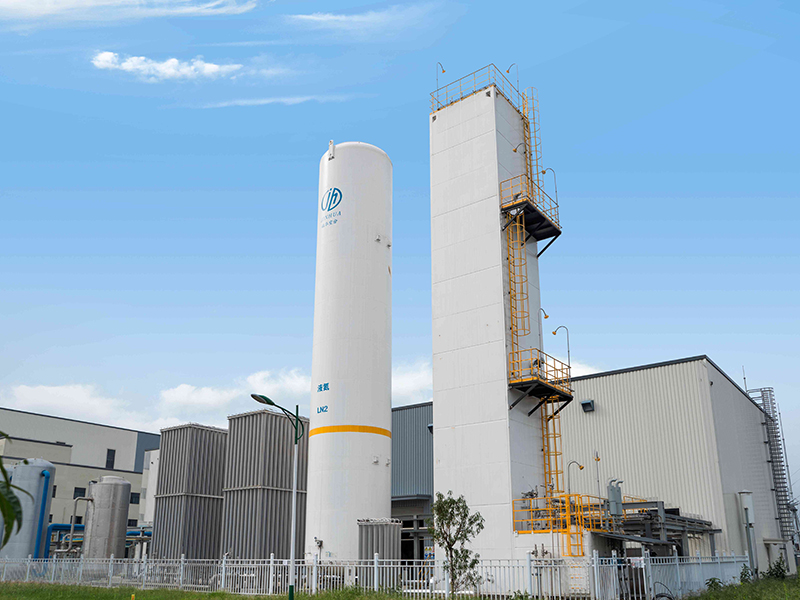

• A multi-story cryogenic distillation column housed within a vacuum-insulated cold box.

• Frost-coated stainless steel pipelines for cryogenic gas transfer.

• Skid-mounted turboexpanders and compressors with advanced noise reduction.

• Centralized control room with digital dashboards displaying real-time production metrics.

◆◆ Conclusion ◆◆

The High-Performance Cryogenic Air Separation Plant is a cornerstone of modern steel manufacturing, delivering the precision, efficiency, and sustainability required to meet global steel demand. By combining cryogenic engineering with intelligent automation, it empowers steelmakers to optimize production, reduce environmental impact, and maintain competitiveness in a resource-intensive industry. As steel producers increasingly prioritize green manufacturing, this system stands as a future-ready solution, driving innovation and operational excellence worldwide.

Note: For visual references, consult industrial gas equipment manufacturers (e.g., Linde, Air Liquide) or request technical brochures.

◆◆ RFQ ◆◆

1. Are you the manufacturer of this equipment？

Yes, we are an experienced manufacturer specializing in this field for 25 years.

2. Can the system be customized to meet specific requirements？

We provide custom-engineered solutions for different applications.

3. Have your products been deployed in global markets?

Yes, we have successfully supplied our air separation plants to over 50 countries worldwide, complying with international standards like ASME.

4. What after-sales services do you provide?

We offer comprehensive after-sales support including:

✔ Technical Consultation - 24/7 expert guidance

✔ Remote Monitoring - Real-time system performance tracking

✔ Maintenance Packages - Scheduled inspections & consumable replacements

✔ On-site Service -Engineer oversea service available

✔ Spare Parts Supply - Original components with 18-month warranty

✔ Operator Training - Customized programs for client's technical team

5. Do you offer technical support services?

We cordially invite you to visit our manufacturing facility or participate in our online technical exchange seminar for detailed discussions.

We welcome you to reach out to our technical specialists for detailed consultations and customized solutions.
