Rare Gas Recovery Plant Using Cryogenic Technology

◆◆ Key Applications ◆◆

1. Semiconductor Manufacturing:

• Recovers helium (He) and argon (Ar) for wafer fabrication, etching, and inert atmosphere creation.

2. Lighting and Laser Industries:

• Purifies neon (Ne), krypton (Kr), and xenon (Xe) for excimer lasers, neon signs, and high-intensity lamps.

3. Medical and Scientific Research:

• Supplies ultra-pure helium for MRI magnets and xenon for anesthesia or imaging contrast agents.

4. Aerospace and Welding:

• Recycles argon and helium for shielding gases in welding and satellite propulsion systems.

5. Environmental and Energy Sectors:

• Captures and repurposes rare gases from industrial emissions or nuclear reactor coolants.

◆◆ Technology and Features ◆◆

1. Cryogenic Recovery Process:

• Feed Gas Compression and Pre-Treatment:

• Raw gas mixtures (e.g., air, industrial exhaust) are compressed, dried, and scrubbed to remove contaminants (CO₂, hydrocarbons, moisture).

• Cryogenic Cooling and Liquefaction:

• Gases are cooled to cryogenic temperatures (-150°C to -269°C) using multi-stage heat exchangers and turboexpanders, selectively liquefying components based on boiling points (e.g., helium: -268.9°C, neon: -246°C).

• Fractional Distillation:

• A series of distillation columns separate gases sequentially. For example:

• Helium Recovery: Separated from natural gas or air using ultra-low-temperature distillation.

• Xenon/Krypton Isolation: Extracted from liquefied air or nuclear reactor off-gases via precise boiling point differentiation.

• Final Purification:

• Adsorption beds, catalytic converters, or cryogenic traps remove trace impurities (e.g., nitrogen, oxygen) to achieve parts-per-billion (ppb) purity levels.

2. System Components:

• Cryogenic Distillation Columns: Constructed from stainless steel or nickel alloys to withstand extreme temperatures and corrosive gases.

• Turboexpanders and Compressors: Energy recovery systems reduce power consumption by 30–40%.

• Vacuum-Insulated Cold Boxes: Minimize thermal losses during gas liquefaction and storage.

• Automated Control Systems: PLC/SCADA interfaces enable real-time monitoring of gas composition, pressure, and flow rates.

3. Energy Efficiency and Sustainability:

• Heat Integration: Waste heat from compressors pre-cools incoming gases.

• Closed-Loop Design: Maximizes gas recovery rates (up to 95%) and minimizes emissions.

• Renewable Energy Compatibility: Integrates with solar or wind power for carbon-neutral operations.

4. Modular and Scalable Architecture:

• Skid-mounted or containerized units allow flexible deployment in remote or space-constrained sites.

• Scalable capacity from 10–10,000 Nm³/h to match industrial demands.

◆◆ Advantages ◆◆

• Ultra-High Purity: Meets SEMI, ISO 8573, and pharmaceutical-grade standards for critical applications.

• Cost Efficiency: Reduces rare gas procurement costs by 50–70% through recycling and reuse.

• Environmental Compliance: Lowers greenhouse gas emissions by preventing rare gas venting.

• Operational Reliability: Redundant systems and predictive maintenance ensure uninterrupted production.

• Future-Proof Design: Adaptable to recover emerging rare gases (e.g., radon for medical research).

◆◆ Visual Description (Text-Based) ◆◆

The plant typically includes:

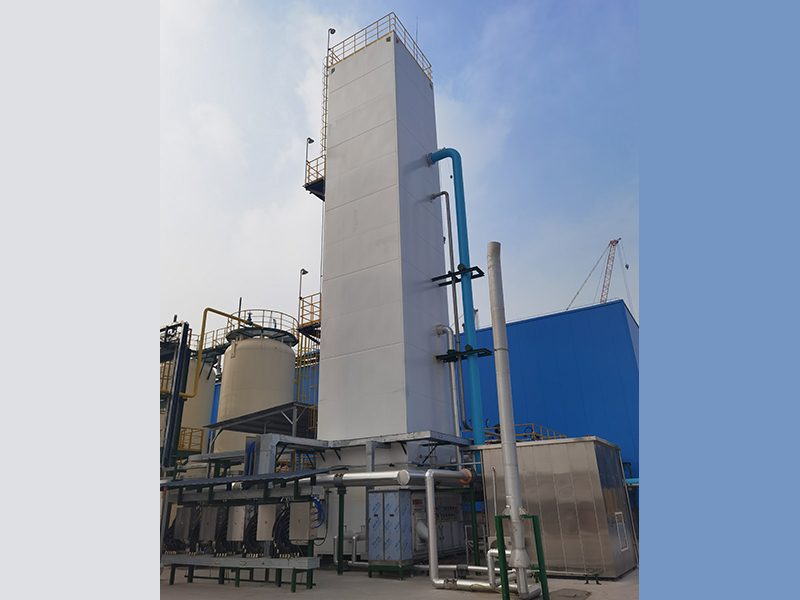

• Vertical cryogenic distillation towers enclosed in vacuum-insulated cold boxes.

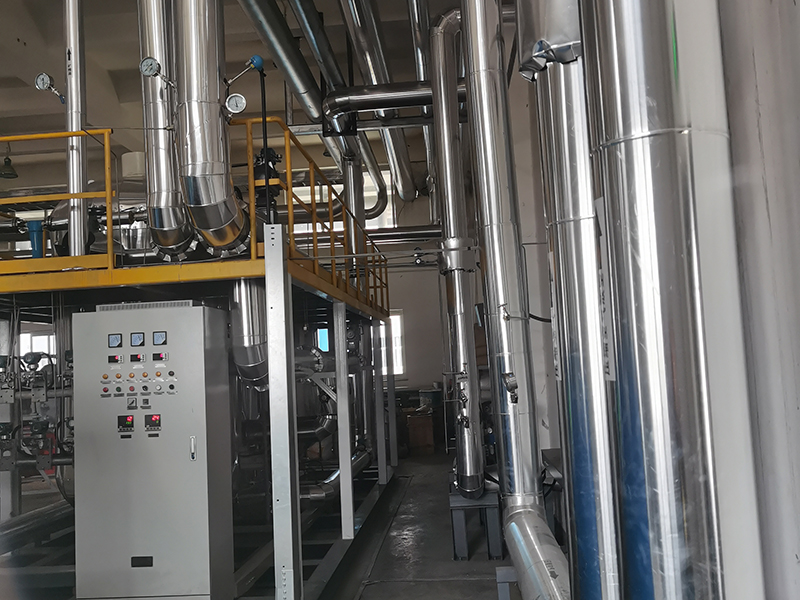

• Stainless steel gas pipelines with frost-resistant insulation.

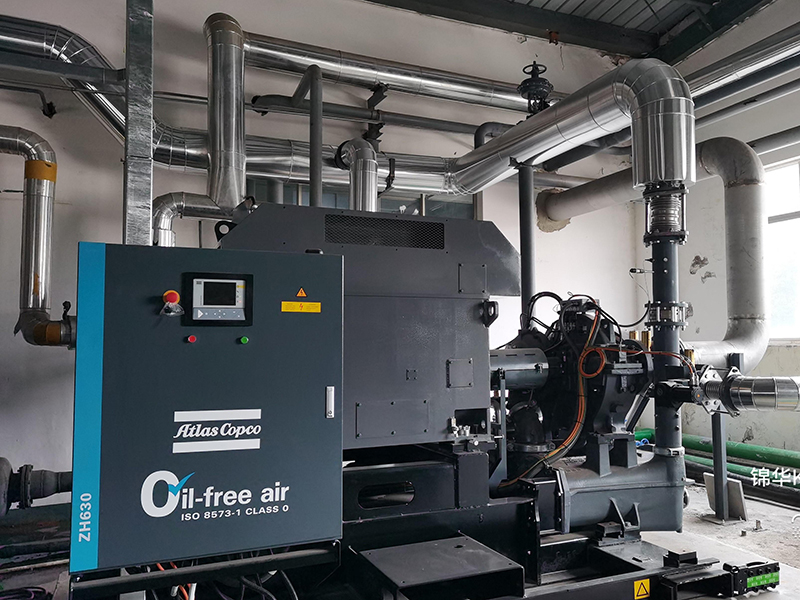

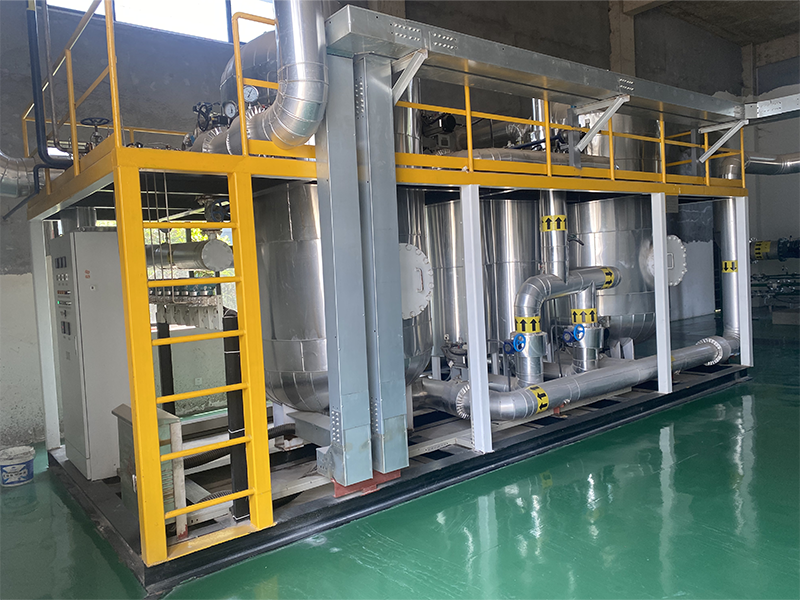

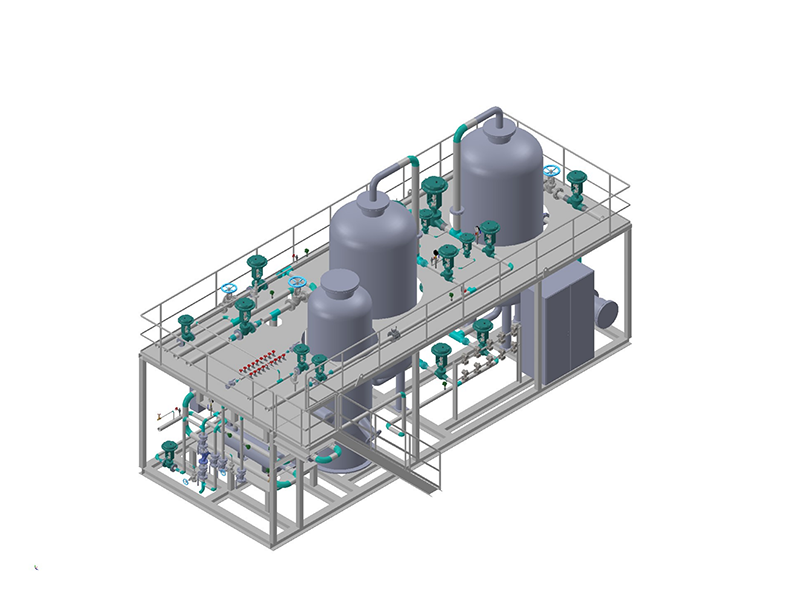

• Skid-mounted compressor stations and heat exchangers for compact integration.

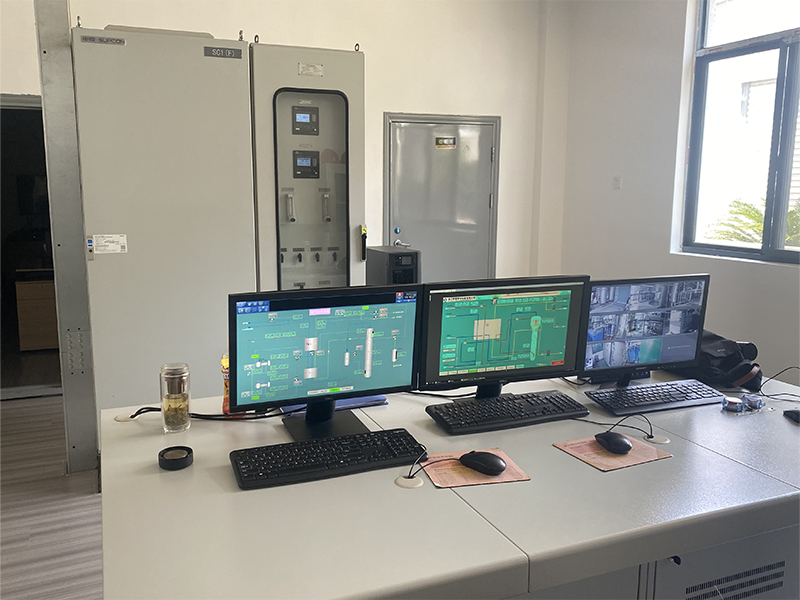

• Digital control rooms displaying real-time analytics for gas purity and system performance.

◆◆ Conclusion ◆◆

The cryogenic rare gas recovery plant represents a pinnacle of industrial gas technology, addressing the growing demand for scarce gas in high-tech and sustainable industries. By combining cryogenic precision with energy-efficient engineering, it transforms waste gases into valuable resources, driving cost savings and environmental stewardship. As global industries prioritize circular economy principles, this system stands as a cornerstone for innovation, enabling the efficient use of rare gas in applications ranging from cutting-edge electronics to life-saving medical technologies.
