Low-Maintenance Oxygen Gas Production Line for Cost Savings

◆◆ Key Applications ◆◆

1. Steel and Metal Smelting:

• Supplies high-purity oxygen for blast furnaces, basic oxygen furnaces (BOF), and electric arc furnaces (EAF) to enhance combustion and reduce slag formation.

2. Chemical and Petrochemical Plants:

• Supports oxidation reactions, ethylene production, and sulfur recovery units.

3. Medical and Pharmaceutical Manufacturing:

• Produces medical-grade oxygen (≥99.5% purity) for hospitals and drug synthesis.

4. Aerospace and Energy:

• Provides oxygen for rocket propulsion testing and clean combustion in gas turbines.

5. Large-Scale Wastewater Treatment:

• Oxygenates aeration basins in municipal or industrial treatment facilities.

◆◆ Technology and Features ◆◆

1. Cryogenic Air Separation Process:

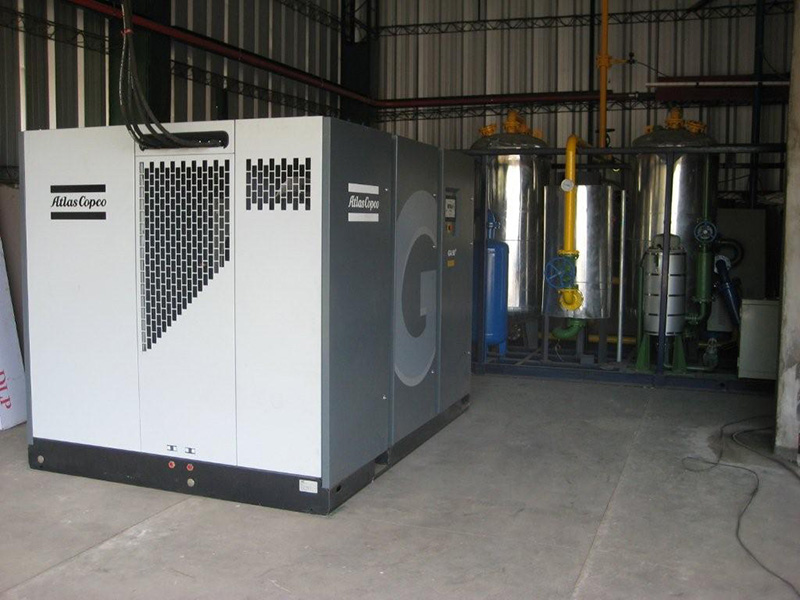

• Air Compression and Cooling: Ambient air is compressed, purified (removing CO₂, moisture, and hydrocarbons), and cooled to -185°C using multi-stage heat exchangers.

• Fractional Distillation: Liquefied air is separated in a distillation column, where oxygen is isolated from nitrogen and argon based on boiling point differences.

• High-Purity Output: Oxygen purity of 99.5–99.9% with residual impurities <10 ppm.

2. Low-Maintenance Design:

• Corrosion-Resistant Materials: Stainless steel or aluminum alloys for pipelines, valves, and distillation columns to withstand cryogenic temperatures and harsh environments.

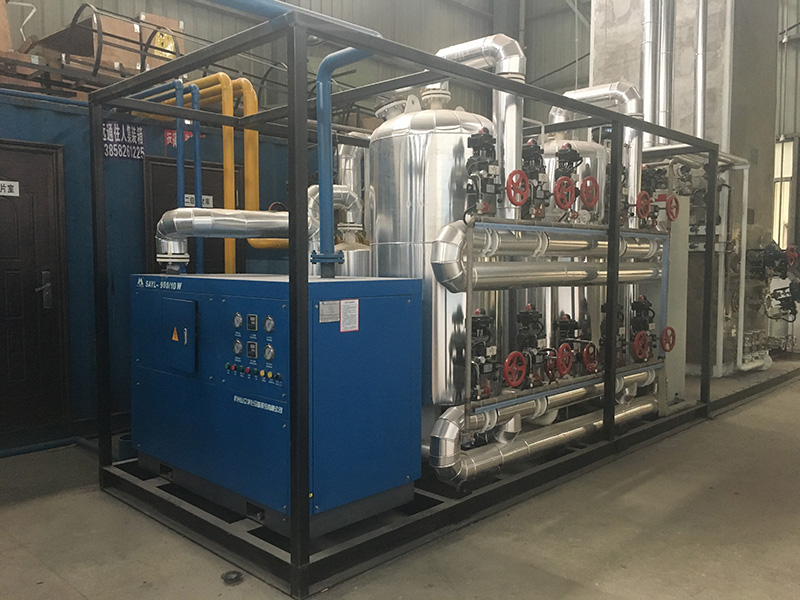

• Self-Cleaning Pre-Treatment: Automated filters and moisture traps reduce particulate contamination, extending maintenance intervals.

• Sealed Cryogenic Circuits: Minimize air ingress and ice formation, reducing manual defrosting needs.

3. Energy Efficiency and Cost Optimization:

• Turboexpanders: Recover energy from high-pressure gas streams to power compressors, cutting energy consumption by 20–30%.

• Waste Heat Utilization: Redirect residual heat to pre-cool incoming air or support auxiliary processes.

• Variable Frequency Drives (VFDs): Optimize compressor and pump speeds based on real-time demand, avoiding energy waste.

4. Smart Automation and Monitoring:

• Predictive Maintenance Algorithms: IoT sensors track equipment health (e.g., vibration, temperature) and alert to potential failures before downtime occurs.

• Remote Control via SCADA: Centralized control systems enable operators to adjust parameters, monitor purity, and troubleshoot remotely.

• Automated Purging Cycles: Prevent ice buildup in pipelines and distillation units without manual intervention.

5. Modular and Scalable Architecture:

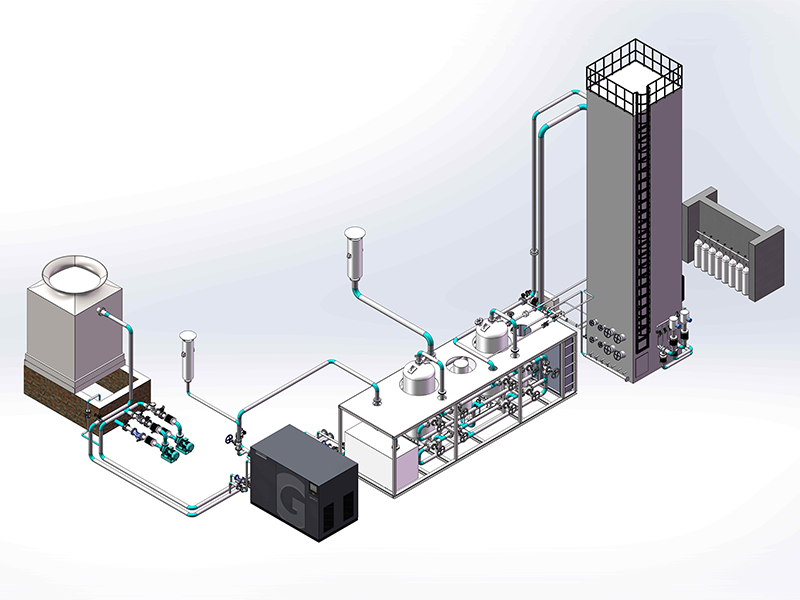

• Pre-assembled skid-mounted modules simplify installation and future capacity upgrades.

• Flexible output ranges (100–10,000 Nm³/h) to match evolving industrial needs.

◆◆ Cost-Saving Advantages ◆◆

• Reduced Maintenance Frequency: Durable components and automated systems cut labor and downtime costs.

• Lower Energy Bills: Turboexpanders and heat recovery systems slash power consumption.

• Long Equipment Lifespan: Corrosion-resistant materials and sealed designs ensure decades of reliable operation.

• Minimal Operator Training: Intuitive controls and remote monitoring reduce reliance on specialized staff.

• Scalability: Incremental capacity expansion avoids costly overhauls

◆◆ Conclusion ◆◆

This cryogenic oxygen production line redefines low-maintenance, high-efficiency oxygen generation for industries demanding both ultra-pure gas and cost-effective operations. By combining the precision of cryogenic distillation with ruggedized engineering and smart automation, it eliminates the traditional trade-offs between purity, reliability, and affordability. Whether for steelmaking, chemical processing, or medical supply chains, it offers a sustainable, future-ready solution that maximizes ROI while minimizing operational complexity.

◆◆ RFQ ◆◆

1. Are you the manufacturer of this equipment？

Yes, we are an experienced manufacturer specializing in this field for 25 years.

2. Can the system be customized to meet specific requirements？

We provide custom-engineered solutions for different applications.

3. Have your products been deployed in global markets?

Yes, we have successfully supplied our air separation plants to over 50 countries worldwide, complying with international standards like ASME.

4. What after-sales services do you provide?

We offer comprehensive after-sales support including:

✔ Technical Consultation - 24/7 expert guidance

✔ Remote Monitoring - Real-time system performance tracking

✔ Maintenance Packages - Scheduled inspections & consumable replacements

✔ On-site Service -Engineer oversea service available

✔ Spare Parts Supply - Original components with 18-month warranty

✔ Operator Training - Customized programs for client's technical team

5. Do you offer technical support services?

We cordially invite you to visit our manufacturing facility or participate in our online technical exchange seminar for detailed discussions.

We welcome you to reach out to our technical specialists for detailed consultations and customized solutions.
